1.54 inch
A compact, entry-level electronic shelf label designed to maximize space efficiency
This ultra compact ESL is engineered for efficient installation even in minimal space. It features a 200 × 200 resolution (189 DPI) full graphic E-ink display, delivering clear readability despite its small size. With 2.4GHz wireless communication (up to 30 meters), it enables fast and stable price updates, while the CR2450 battery ensures a lifespan of at least 5 years, reducing maintenance costs.Additionally, its IP65-rated durability and wide viewing angle of over 170° allow for reliable operation in various environments. It is an ideal solution not only for retail environments such as convenience stores and drugstores, but also for logistics picking labels and small parts management in electronics and manufacturing industries.
Highlights
Specification
| Model Name | - White Case: MP0154A - Black Case: MP0154B |
|---|---|

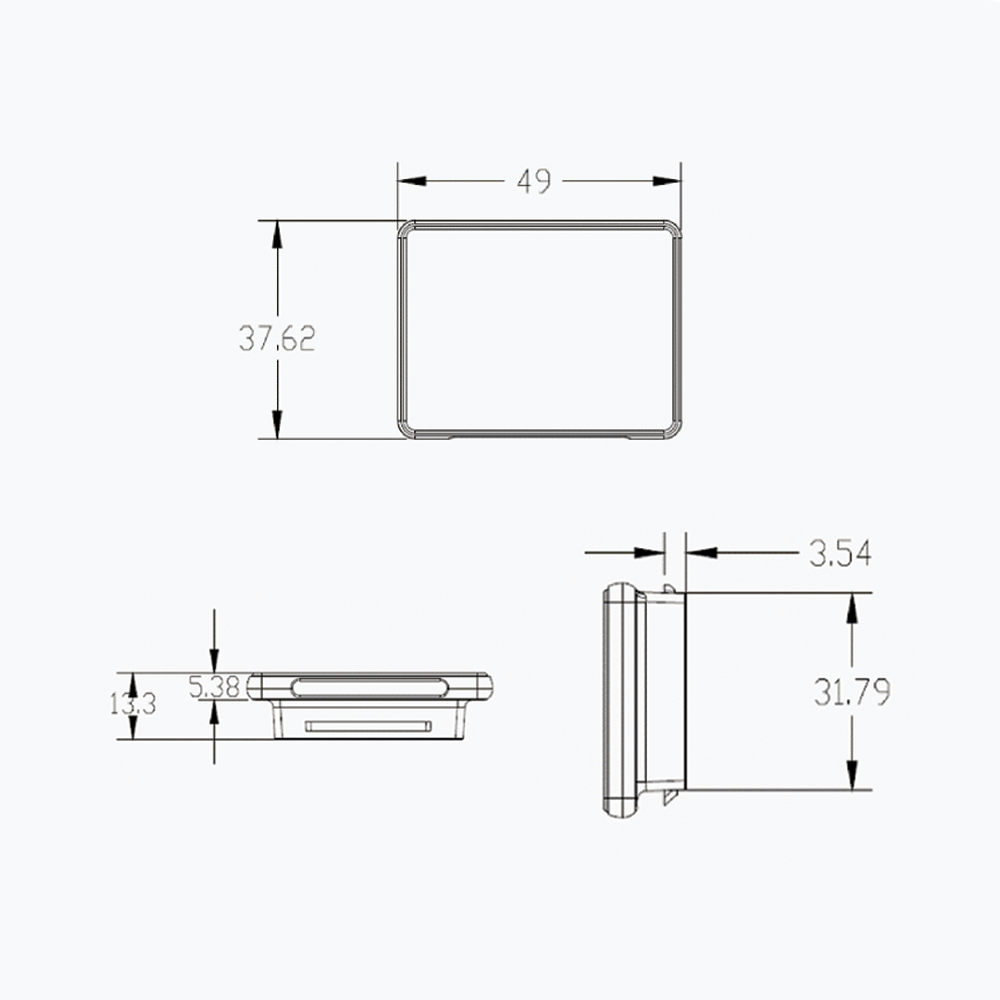

| Dimensions (mm) | 49 x 37.62 x 13.3 |
| Case Color | White, Black |
| Weight | 20 g |
| Display | Full graphic E-ink display (supports White / Black / Red / Yellow colors) |
| Display Area (mm) | 27.51 x 27.51 |
| Resolution (pixels) | 200 x 200 |
| Pixel Density (DPI) | 189 |
| Viewing Angle | 170° |
| LED | Supports up to 7 colors based on RGB (Red, Green, Blue) |
| Wireless Communication / NFC | 2.4GHz (up to 30 m) NFC supported |
| Battery | CR2450 (minimum 5 years lifespan) |
| IP Rating | IP65 |
