Wearable scanner with Bluetooth Classic, built on WR10’s core features
The WR15 is an industrial wearable ring scanner that carries forward the WR10’s ultra-lightweight design and exceptional durability.Comfortably worn on the finger (Ring Type) or the back of the hand (Glove Type), it minimizes fatigue during long shifts. With 2D Imager and Smart Focus options,
it delivers accurate barcode scanning from 5.6 cm to 14 meters.
Powered by a 1,000mAh battery and Bluetooth 5.3, the WR15 provides long and stable operating time.
With Bluetooth Classic support, it offers broader compatibility with a wide range of devices, enabling stable data transmission and multi-device connectivity.
Features such as Zero-Second Boot, Tap-to-Pair, Scan-to-Pair, and NFC Pairing enable faster, easier connections and seamless operation.
Smart battery alerts, safe power management, and intelligent charging provide enhanced reliability and stability even in demanding industrial environments
Highlights
-
Bluetooth 5.3 with Classic Support
Bluetooth Classic enables broad compatibility with various peripheral devices, providing stable data transmission and support for multi-device connections. -
Hands-Free Solution to Boost Work Speed
With both Ring Type, worn on the finger, and Glove Type, worn on the back of the hand, the WR15 keeps both hands free for fast and efficient scanning during tasks. By minimizing unnecessary worker movement and processing time, it helps improve overall productivity. -
Flexible Scanner Options

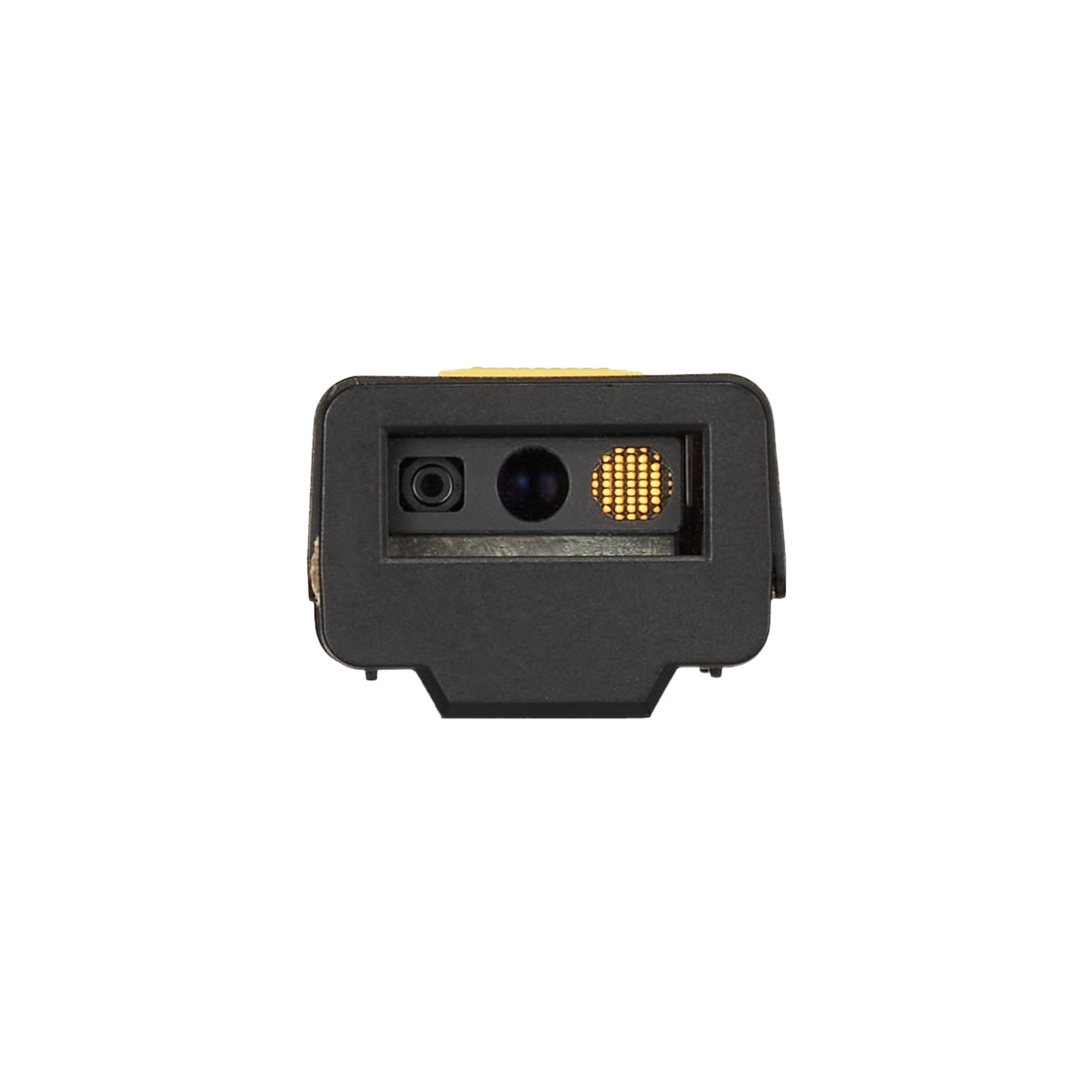

The device offers 2D Imager (SE4107, E4770) and Smart Focus (SE5500) scanner options, enabling accurate scanning across a wide range of distances, from a minimum of 5.6 cm up to 14 m, in various working environments. -
Battery for Up to 12 Hours of Continuous Use
With a large 1,000mAh battery and Bluetooth 5.3 low-power design, the device extends operating time, allowing up to 12 hours of continuous use in the field without battery replacement or interruption of work. -
Zero-Second Boot
The scanner is ready to operate immediately when powered on, eliminating the need to wait for the device to boot or load. This ensures smooth workflow without delays or interruptions caused by cumulative boot times. -
Fast and Easy Connectivity with NFC-Based Pairing
With Tap to Pair, Scan to Pair, and NFC technology, the device can be quickly and easily connected with a single touch, without the need for complex setup. -
Intelligent Management Features
Equipped with smart battery alerts, secure power control, and intelligent charging technology, the device communicates its status to the user in real time through three RGB LEDs, sound (buzzer), and vibration. This allows users to easily monitor device conditions and ensure optimal operation.
Specification
| SIze | ⓦ 70.7 x ⓗ 33 x ⓓ 22.1 mm |
|---|---|
| Weight | Scanner only: 29g Scanner+Battery: 55g, Scanner+Battery+Trigger+HandStrap: 70g |
| Data Capture | 2D Imager - SE4107, E4770 Long Ranger – SE5500 |
| WPAN | Bluetooth 5.3 core specification Bluetooth classic (BDR/EDR) & Bluetooth low energy (BLE) |
| Battery | 1000mAh |
| Tumble Test | 0.5m/2,000 times |
| Drop Test | 1.8m |
| Sealing | IP65 |
