Wearable Scanner for Accurate Barcode Scanning and Hands-Free Operation

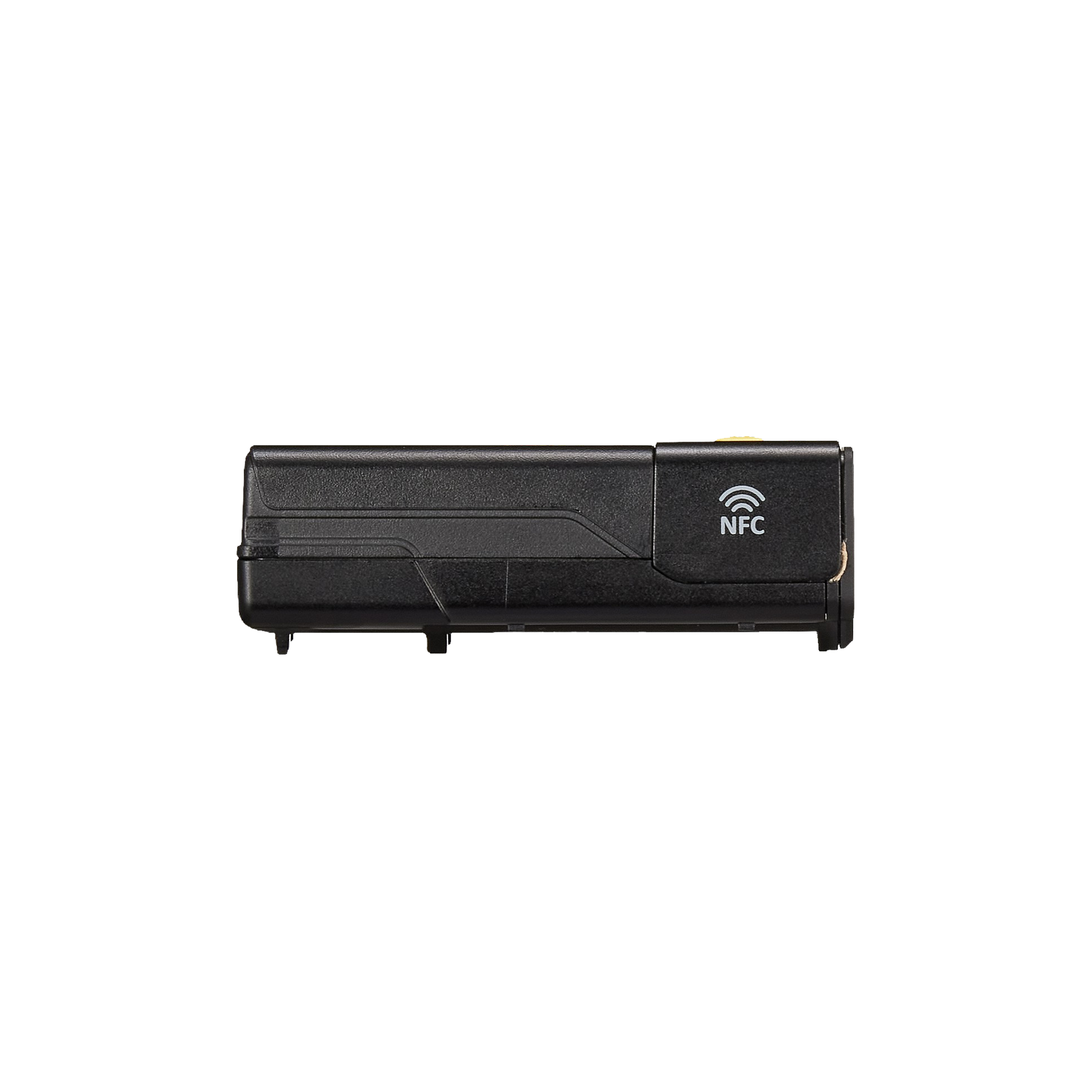

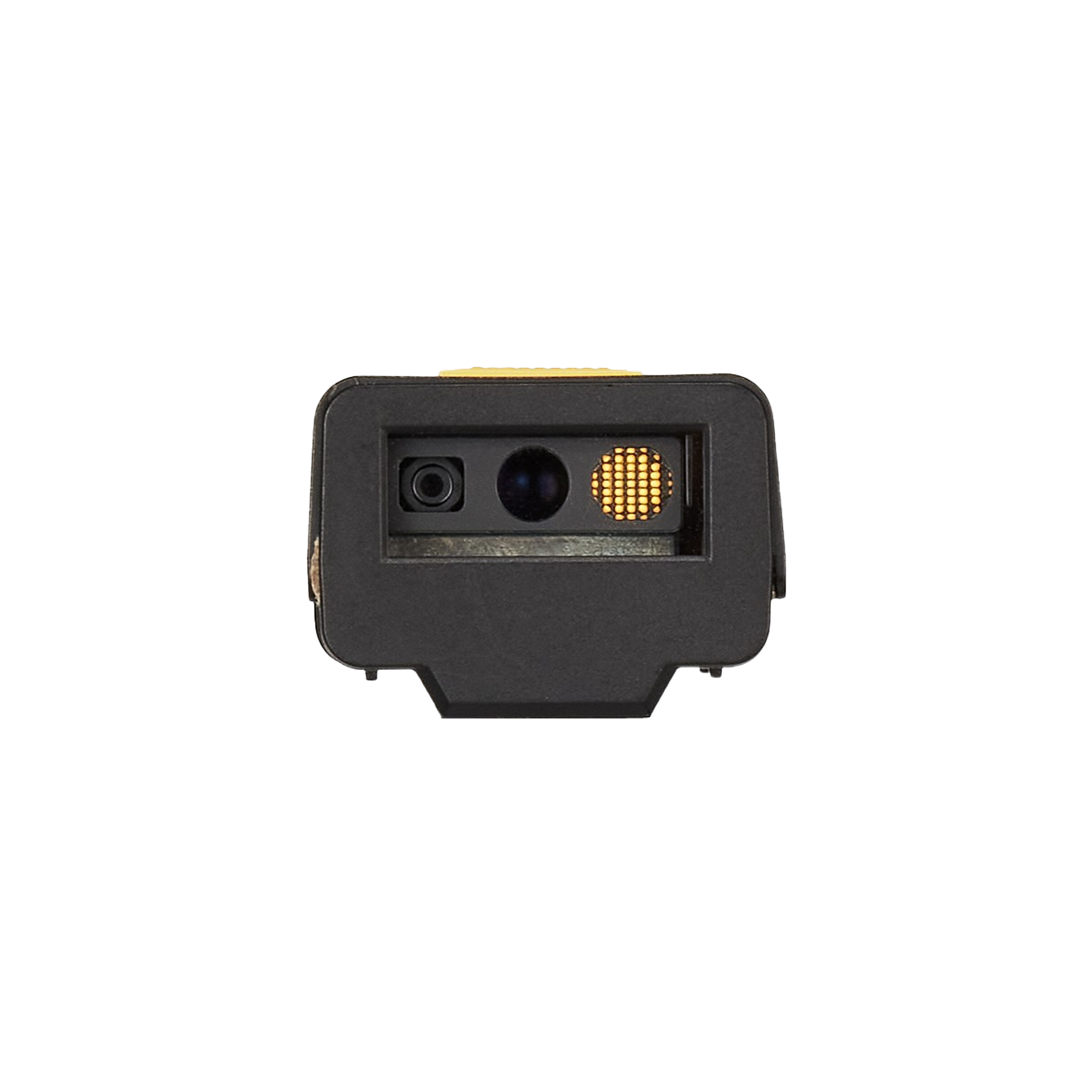

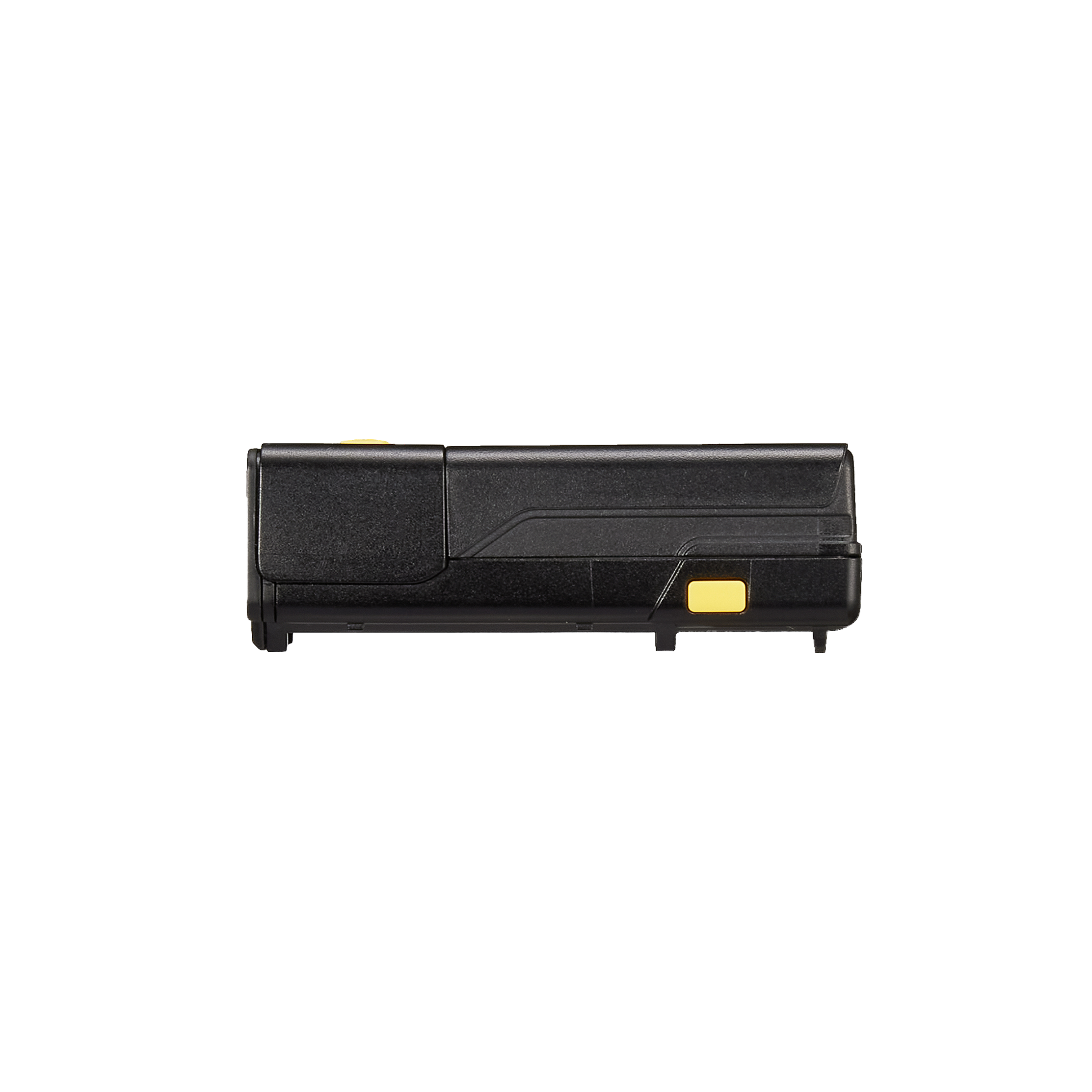

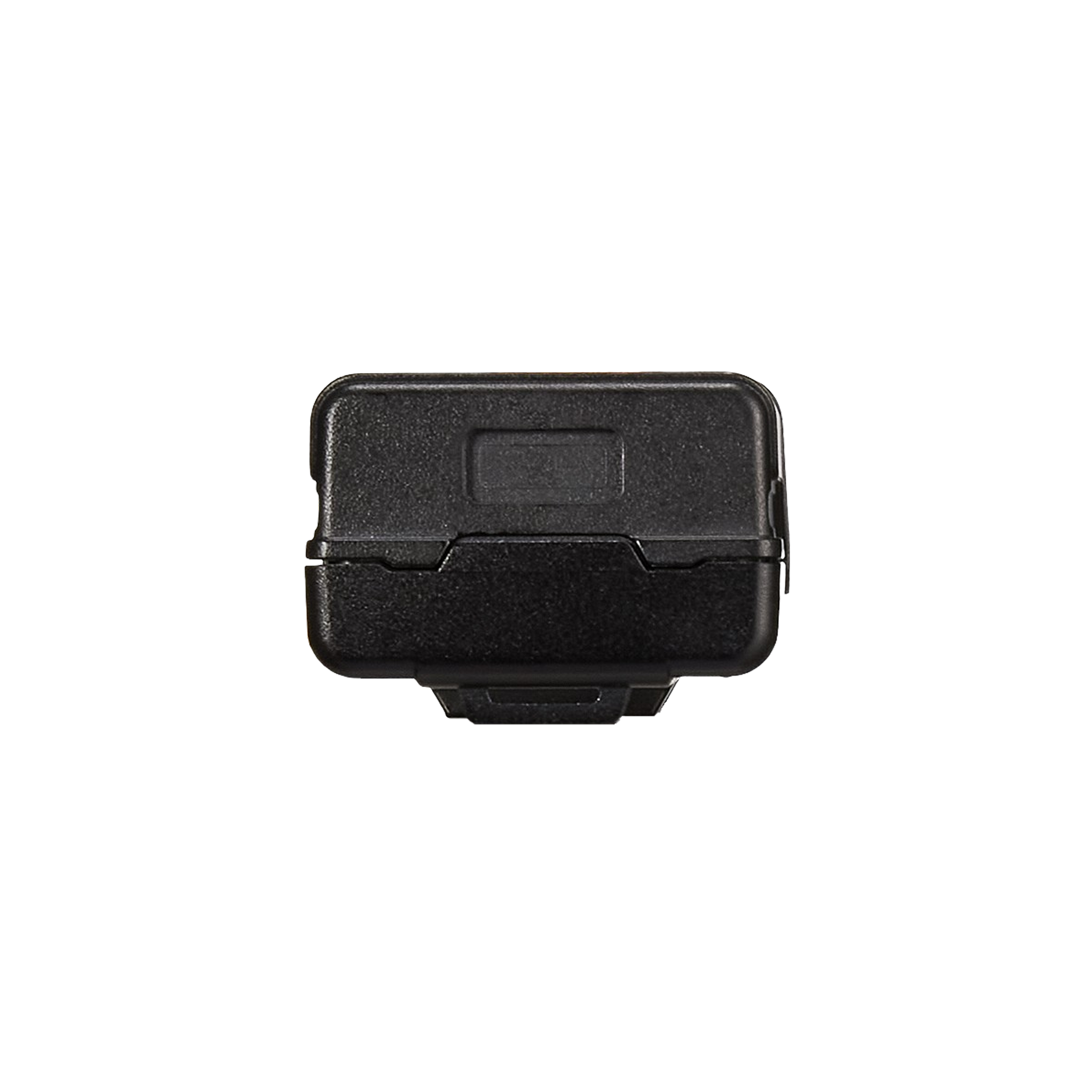

The WR10 is an ultra-lightweight, rugged wearable scanner designed for industrial environments. It can be worn on a finger like a ring or attached to the back of the hand with a glove, helping minimize user fatigue during long hours of operation.With 2D Imager and Smart Focus barcode scanner options, the WR10 delivers accurate barcode scanning from as close as 5.6 cm to as far as 14 m.
Its high-capacity 1,000mAh battery and Bluetooth 5.3 low-power design provide extended operating time, while Zero-Second Boot enables seamless operation without unnecessary downtime.
The WR10 also supports Tap-to-Pair, Scan-to-Pair, and NFC, allowing fast and easy pairing with compatible devices.
In addition, smart battery alerts, safe power management, and intelligent charging features provide a safer, more reliable operating experience.
Highlights
-
Hands-Free Solution to Boost Work Speed
With its ring-type design worn on the finger or glove-mounted design worn on the back of the hand, the WR10 keeps both hands free for fast and efficient scanning. This minimizes unnecessary worker movement and processing time, improving overall productivity. -
Flexible Scanner Options
The device offers 2D Imager (SE4107) and Smart Focus (SE5500) scanner options, enabling accurate scanning across a wide range of distances, from a minimum of 5.6 cm up to 14 m, in various working environments. -
Battery for Up to 12 Hours of Continuous Use
With a large 1,000mAh battery and Bluetooth 5.3 low-power design, the device extends operating time, allowing up to 12 hours of continuous use in the field without battery replacement or interruption of work. -
Zero-Second Boot
The scanner is ready to operate immediately when powered on, eliminating the need to wait for the device to boot or load. This ensures smooth workflow without delays or interruptions caused by cumulative boot times. -
Fast and Easy Connectivity with NFC-Based Pairing
With Tap to Pair, Scan to Pair, and NFC technology, the device can be quickly and easily connected with a single touch, without the need for complex setup. -
Intelligent Management Features
Equipped with smart battery alerts, secure power control, and intelligent charging technology, the device communicates its status to the user in real time through three RGB LEDs, sound (buzzer), and vibration. This allows users to easily monitor device conditions and ensure optimal operation. -
Reliable Durability
The device features a hard-pack battery for enhanced resistance to external shocks and structural stability. Its IP65-rated dustproof and waterproof design ensures reliable operation even in harsh industrial environments.
Specification
| Size | ⓦ 70.7 x ⓗ 33 x ⓓ 22.1 mm |
|---|---|
| Weight | Scanner only: 29g Scanner+Battery: 55g, Scanner+Battery+Trigger+HandStrap: 70g |
| Data Capture | 2D Imager - SE4107 Long Ranger – SE5500 |
| WPAN | Bluetooth V5.3 BLE |
| Battery | 1000mAh |
| Tumbler | 0.5M/2,000times |
| Drop | 1.8M |
| Sealing | IP 65 |
